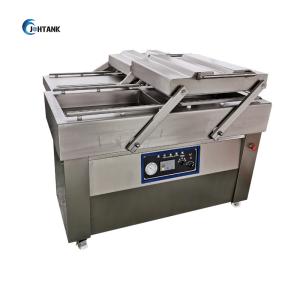

Double Chamber Vacuum Packing Machine 4pcs/Min

MOQ : 1set

Price : USD 15800 PER SET

Supply Ability : 11 SETS PER MONTH

Delivery Time : 10 WORKING DAYS

Packaging Details : film cover and then loaded to the container

Name : Industrial Double Chamber Vacuum Sealer Commercial Food Meat Vaccum Packing Sealing Machine DZ400/2SB

Material : SUS30408

Driven type : Pneumatic

Sealing speed : 1-4pcs/min

workroom size : 570*540*110(mm)

Keyword : Packaging Machine

Function : Preserved Food

Automatic grade : Automatic

Packing type : Bags, Film, Foil, Pouch

Core component : pump

Contact Now

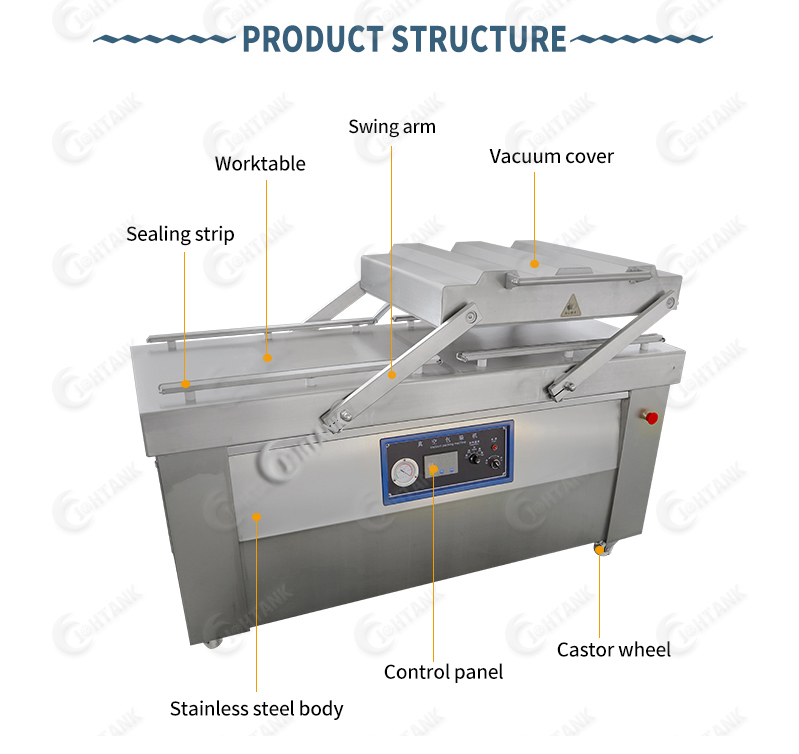

Industrial Double Chamber Vacuum Sealer Commercial Food Meat Vaccum Packing Sealing Machine DZ400/2SB

Vacuum packing machine is used in vacuum packaging for the food , pharmaceutical, aquatic, chemical and electronic industries. It can prevent the products from oxidization and mildew, as well as corrosion and moisture, keeping the quality and freshness of the product over a prolonged storage time.

Operations, steps

1. After checking before starting, turn on the power.
2. Set the exhaust time, heat seal time meter heat seal temperature gear (low, medium, high)
3. Put the packed articles into the vacuum chamber, lift the pressure rod membrane and press it on the bag mouth.

4. Press down the vacuum cap. The packing procedure starts with air exhaustion and then goes to heat sealing until the vacuum cap pops up automatically. The packing process ends.

Model	Voltage	Power	Dimension(L×W×H)	Material of vacuum case and hull	Volume of vacuum case	Packing Capacity
DZ-400/2S	220V 50HZ	1KW	1010600850	Stainless steel	50049090	180-300/H
DZ-500/2S	380V 50HZ	2KW	1220640900	Stainless steel	600540100	180-300/H
DZ-600/2S	380V 50HZ	3KW	1405725920	Stainless steel	700610100	180-300/H
DZ-600/4S	380V 50HZ	3KW	1405725920	Stainless steel	700610100	180-300/H
DZ-700/2S	380V 50HZ	3KW	1605725920	Stainless steel	800610100	180-300/H
DZ-800/2S	380V 50HZ	5KW	18057251000	Stainless steel	900700120	180-300/H
