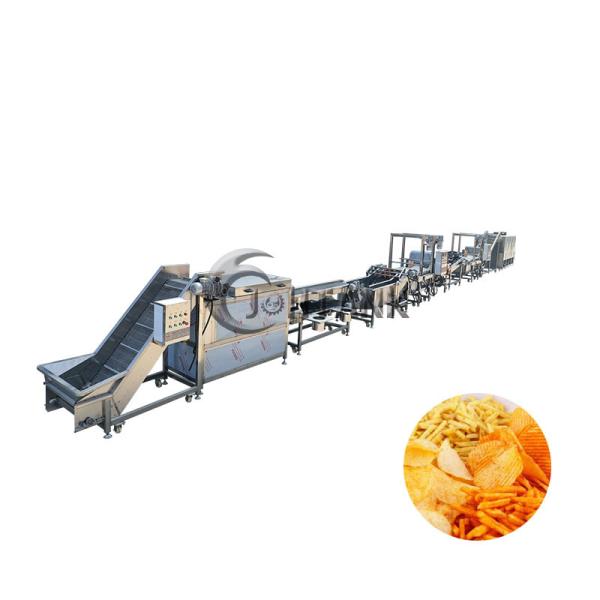

Full Automatic Potato French Fries Making Line

Full Automatic Potatoes Frozen French Fries Processing Machinery

Production process of Full Automatic Potatoes Frozen French Fries Processing Machinery:

1.Conveyor hoist machine → 2.Cleaning and peeling machine → 3.Picking machine → 4.Cutting machine → 5.Water bucket elevator → 6.Washing machine → 7.Blanching machine → 8.Vibrating machine to de-water → 9.Electric dryer → 10.Continuous frying machine → 11.Vibrating de-oil machine → 12.Electric dryer
⇓
•POTATO CHIPS → 13.Seasoning machine → 14.Packing machine
•FRENCH FRIES → 13.Fluidized belt → 14.Packing machine

Washing flow machine:

1. Washing time is 30-60s;

2. Washing process is for washing off the potato starch on the potato chips which can keep it from fall in the oil and keep long-use life for the frying machine;

Electric dryer:
1. With big air volume centrifugal turbofan, and small sharp air outlet, enable quick drying;
2. With SUS 304 mesh belt, mesh belt width could be 500-1000mm;
3. Mesh speed adjustable by gearbox;
4. With turnover type or flat type mesh belt, suitable for different products drying;
5. Each unit of blowing fan can be controlled separately;
6. Suitable for production line, continuously working;

Continuous frying machine:
1. Optional heating method: electricity, gas, steam, electromagnetism, etc;

2. Frying time can be set, automatic temperature control 0-300°C;
3. Double mesh belt and the conveyor speed is adjustable;
4. Can be equipped with oil filter machine and oil tank;
5. Equipped with mesh lifting system, easy to clean,fire-extinguishing device is optional;
6. With oil storage tank and oil pump;

Vibrating de-oil machine
1. lt is used to remove some oil by vibrating;
2. It is equipped with oil collection board and oil collection box;
3. Overcome the potato chip oil rate is high, greasy mouth defects. It enhances the flavor of the chips;
4. Put the fried chips into the De - oiling machine, then the chips will be ok for one minutes.

Packing machine:
1. Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use;
2. Use famous brand electric and pneumatic components, stable and long life circle;
3. Use superior mechanical components, reduce the wear out loss;
4. When packing, gas is filled into the aluminum plastic bag, and the potato chip production line can effectively prevent the chips from breaking, Charging, packing and coding are completed at one time.

Full Automatic Potatoes Frozen French Fries Processing Machinery Equipment Parameters:

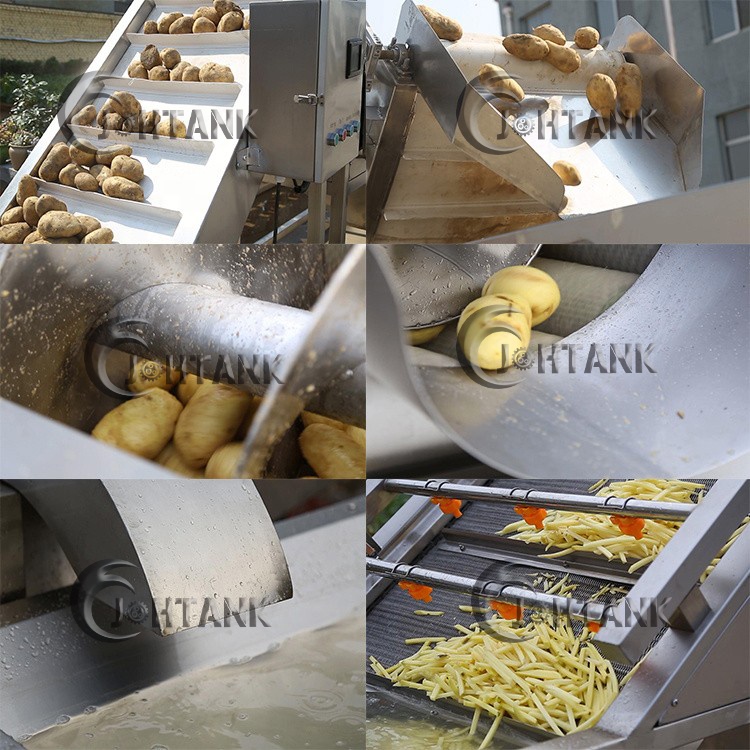

Full Automatic Potatoes Frozen French Fries Processing Machinery Equipment Live Show:

Full Automatic Potatoes Frozen French Fries Processing Machinery Equipment Features:

1. Advanced oil and water technology, overcome the conventional frying machine defects, automatic filtration, to keep fried oil clean, so that the product is consistent, not only improve product quality, prolong the shelf life, but also bring a higher valuead-ded product.
2. The automatic filtration of the machine can greatly prolong the service life of frying oil, do not need frequently change oil, the oil consumed in the process of frying is equivalent to the oil absorbed by the product, and the efficiency of saving fuel is greatly improved.
3. Advanced and efficient heating systems have largely avoided energy waste and saved large amounts of energy expenditure.

CE French Fries Making Line

Potato French Fries Making Line

2000kg/h french fries processing machine

Full Automatic Potato French Fries Making Line Images
